1936 Citroen
Traction Avant 11A

A completely new engine/gearbox cradle, front suspension assembly as well as front and rear brake hubs were required.
Most of the parts were 3D printed from CAD drawings that I created.
For a complete version of the model's build story click here.

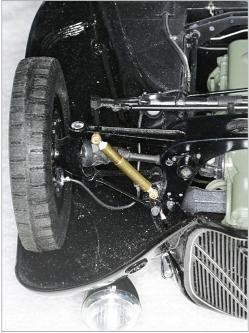

Although these pictures don't show it, the model incorporates rack and pinion steering, a feature which was introduced in May 1936. A consequence of that change was that the front shock absorbers were moved to the front of the cradle.
Engine & Gearbox
Suspension
Prototype
Specifications

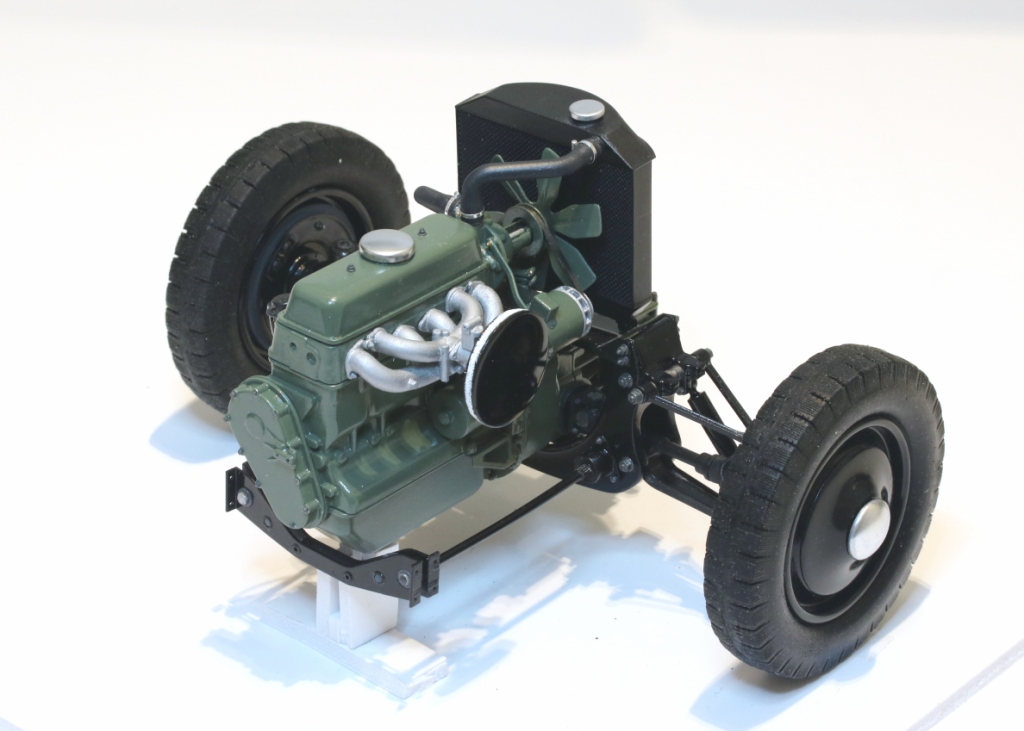

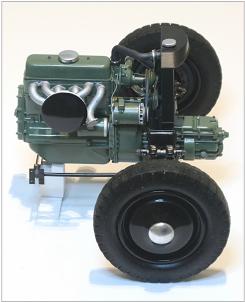

Although the engine and gearbox are very similar to the 7CV, the 11A has a wider radiator and wider cradle.
Drawings

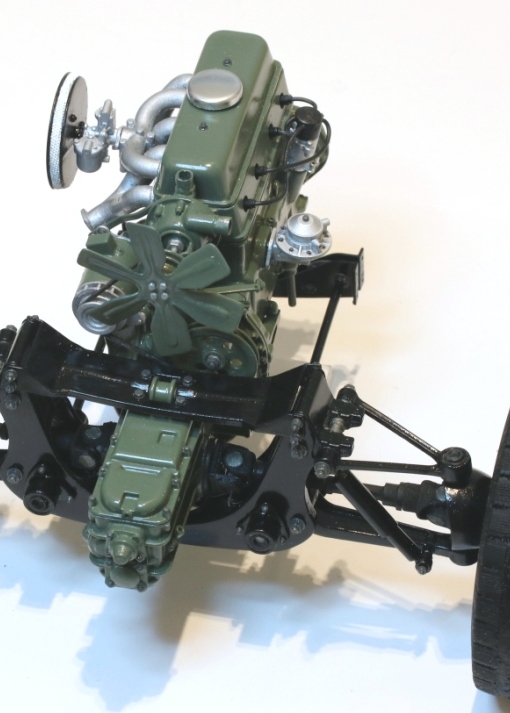

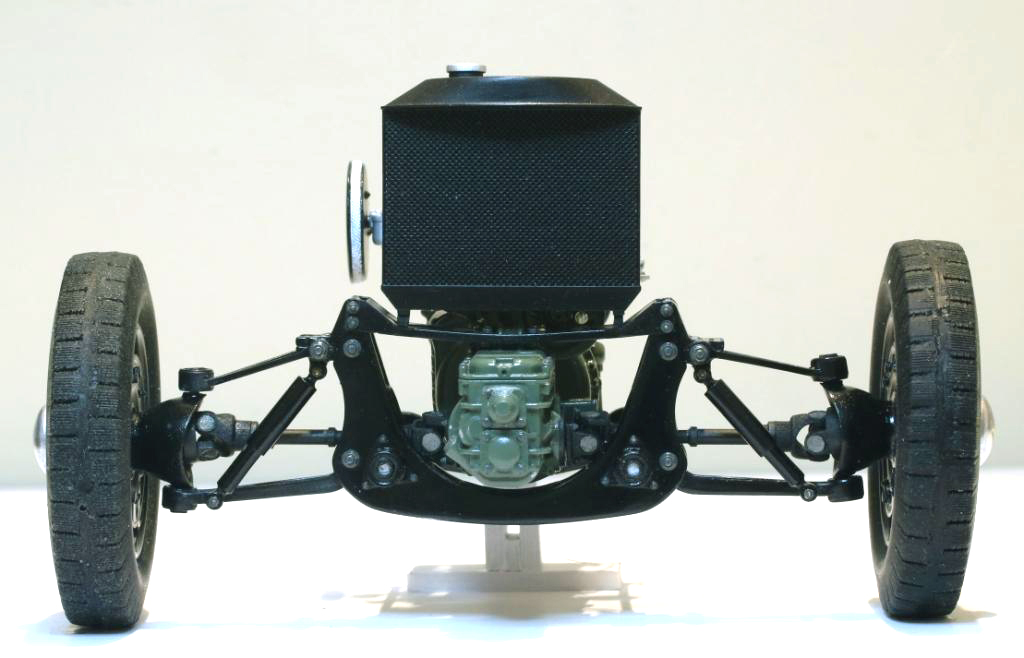

Torsion bars, running back from the cradle, are part of the independent front suspension. They are anchored by a cross-beam attached to the sides of the engine bay.
Finished Model
The tire tread patterns are consistent with the 150 x 400 Michelin 'Stop' tires originally fitted to the 11A.
Engine & Gearbox
Body Details

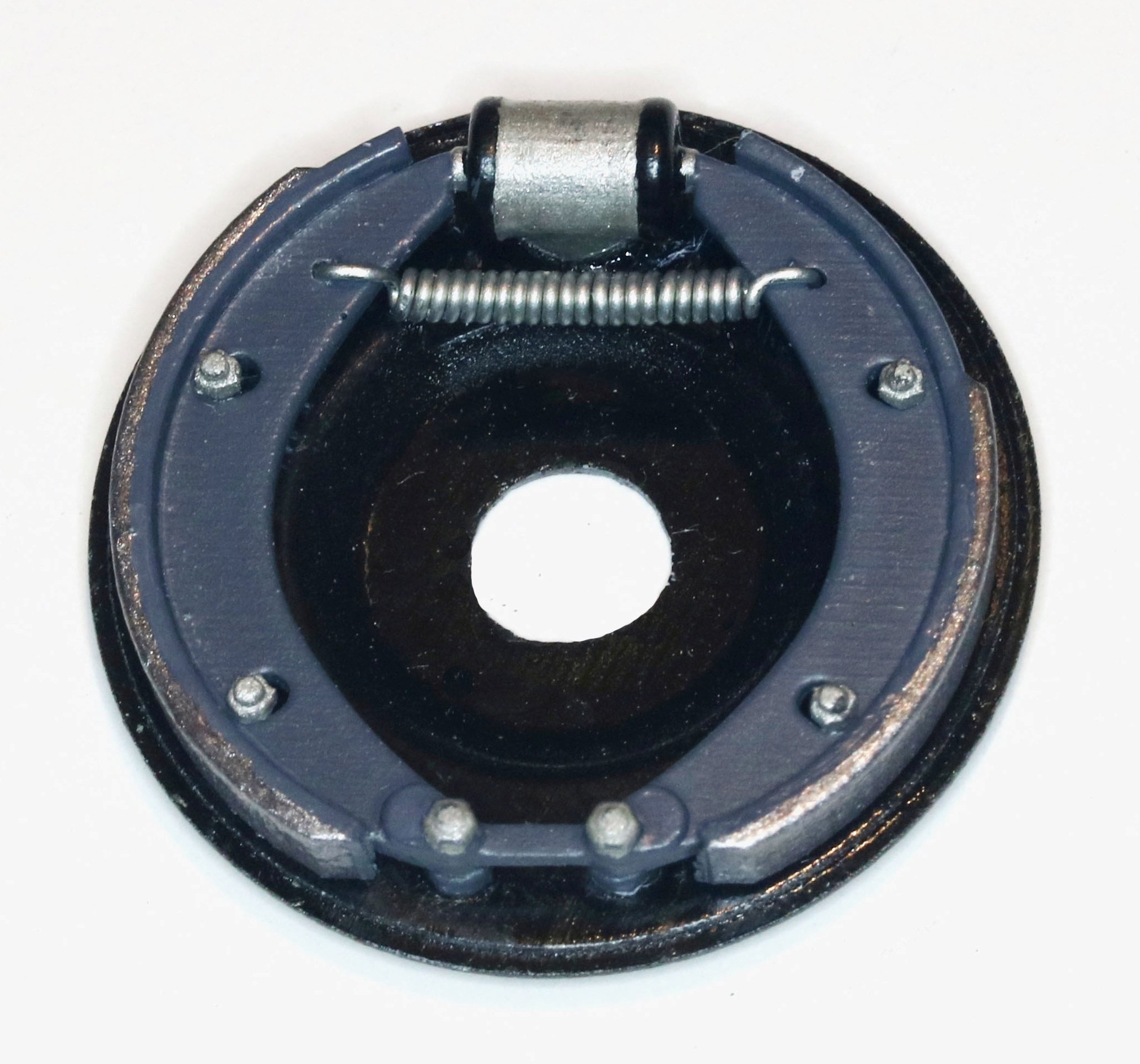

New brake hubs.
This one for the rear.

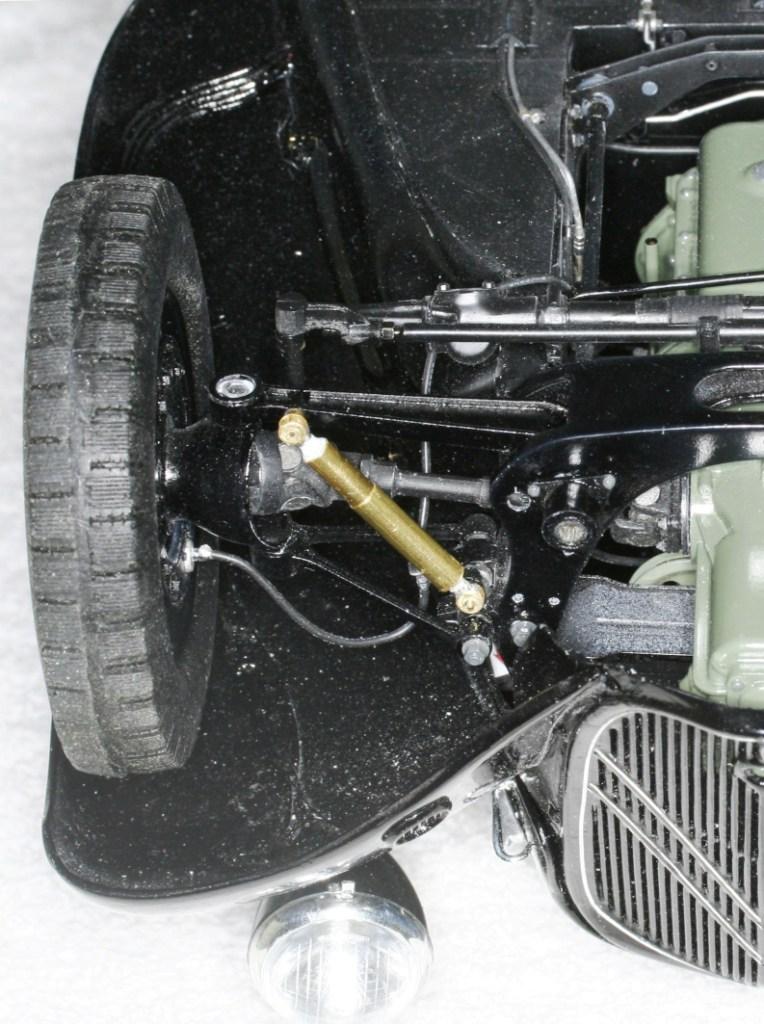

Underside showing the front suspension. The new scratch-built, adjustable shock absorbers were a last minute decision.
Rear axle, suspension and brakes.

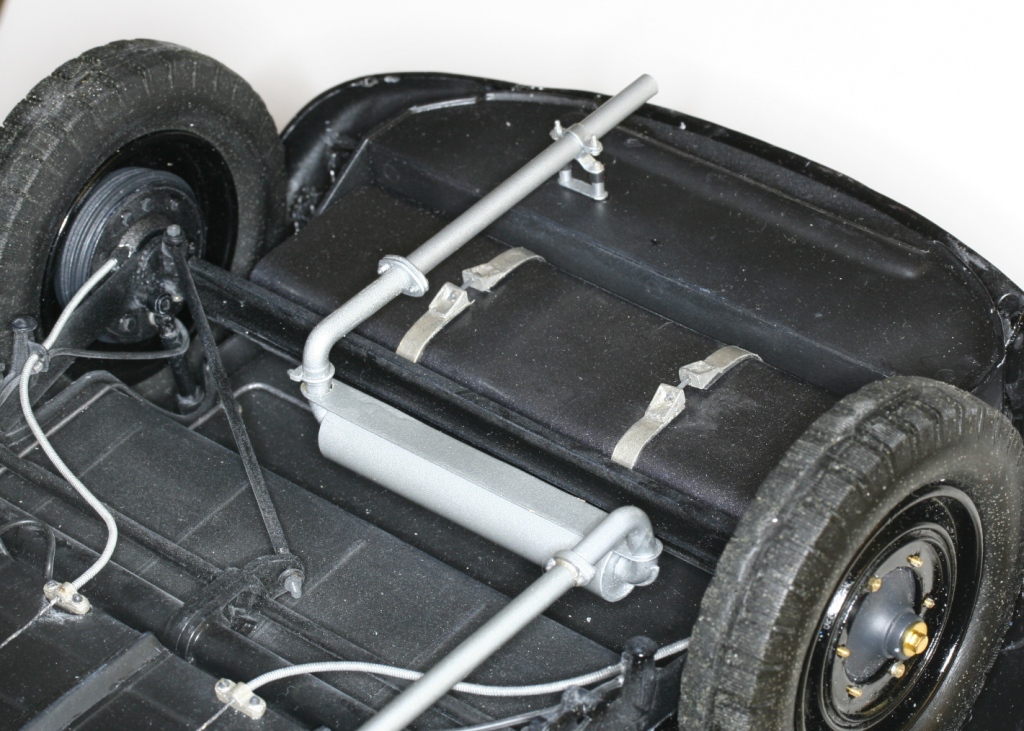

The fuel tank, with its hangers, and the exhaust system are scratch built. The two wire-wrapped steel handbrake cables are also clearly visible.
