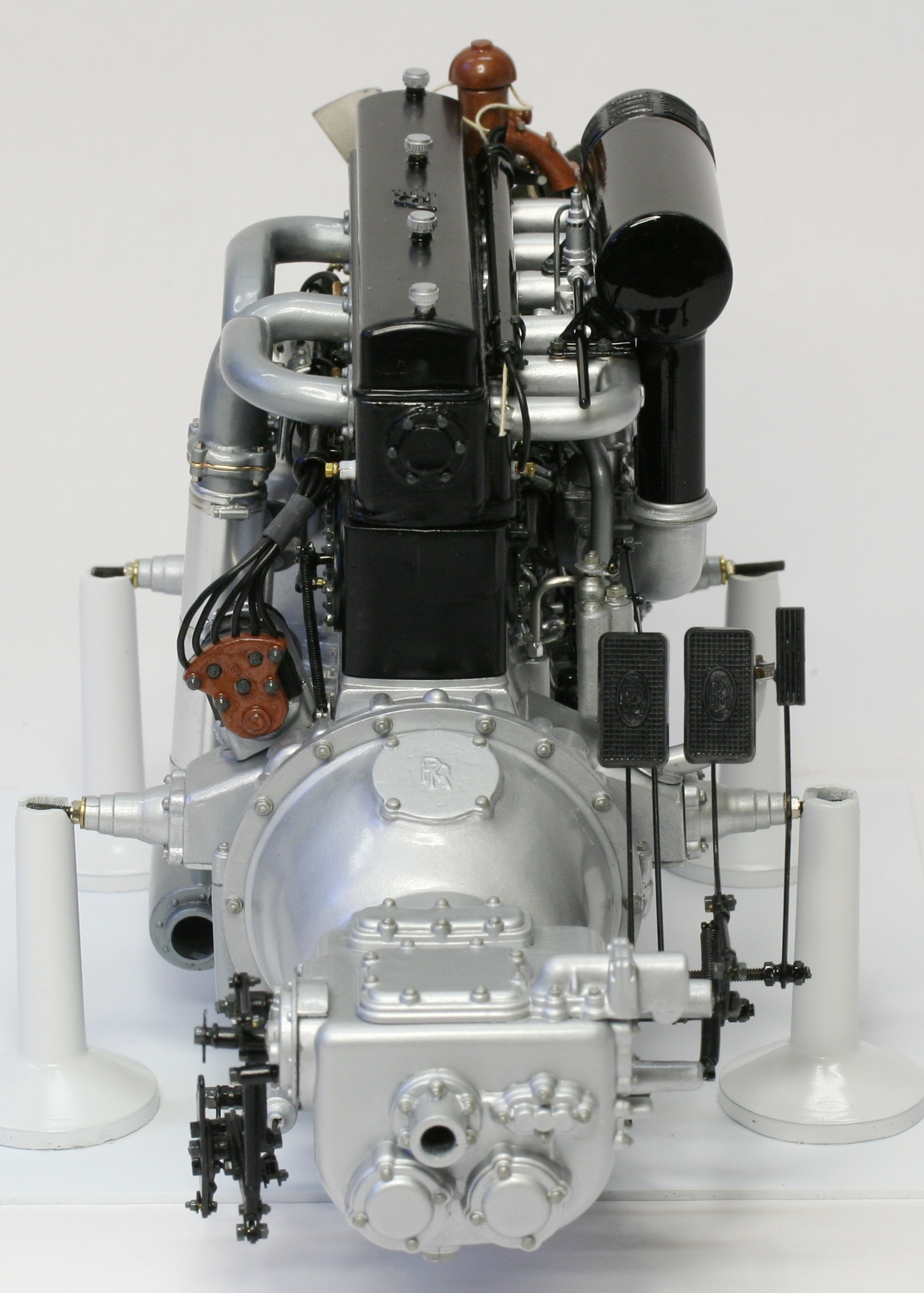

1933 RR Phantom II Semi-Expanding Carburetor  ...  Photos & Build Note

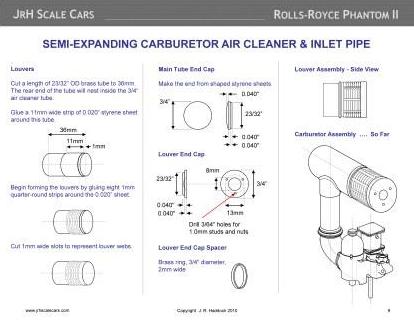

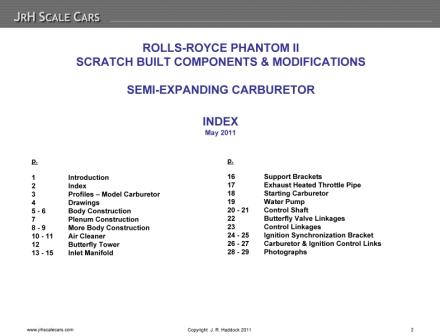

Super detail build notes for this carburetor are now complete. Click here to download a PDF copy (20Mb).
Build Notes

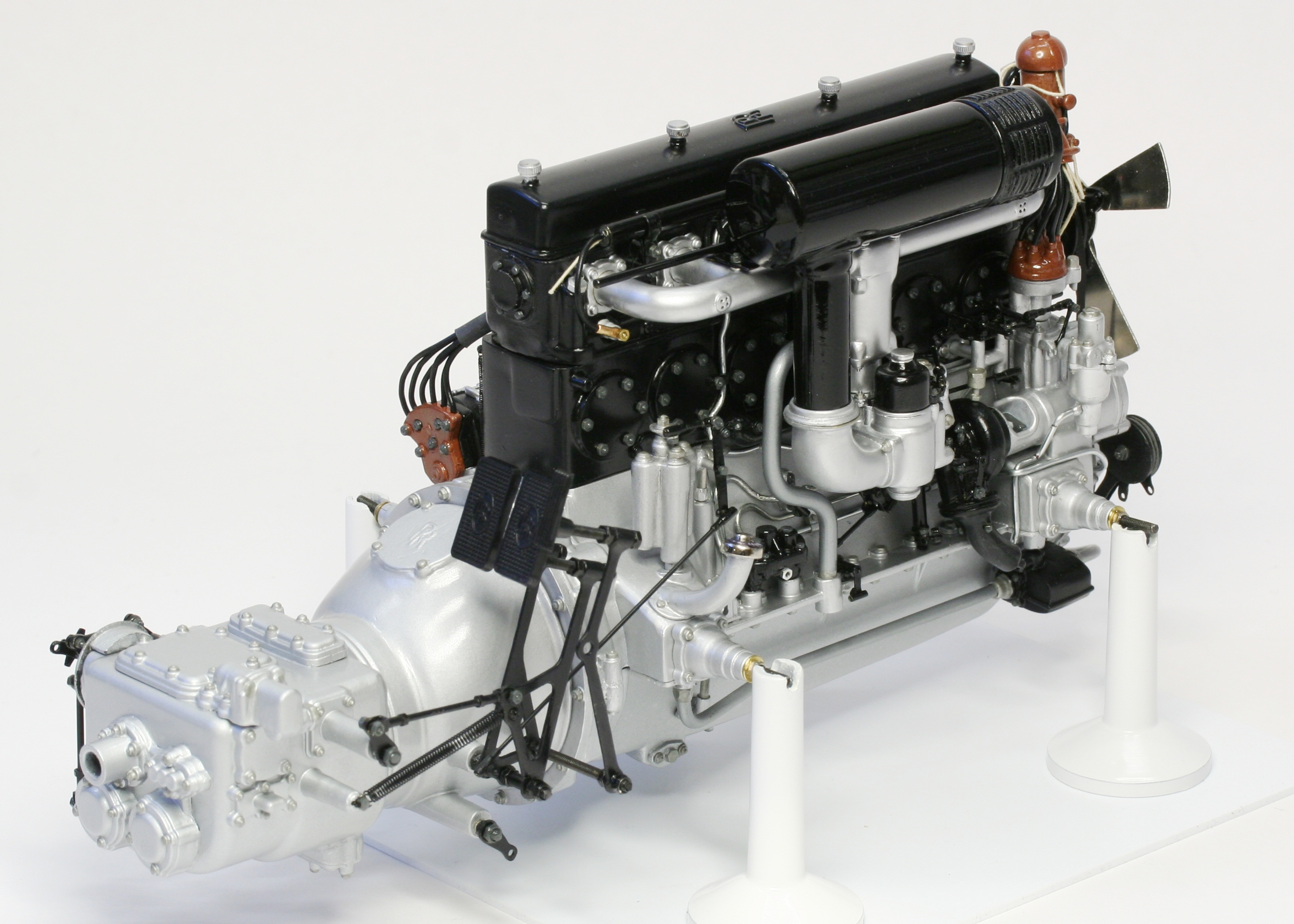

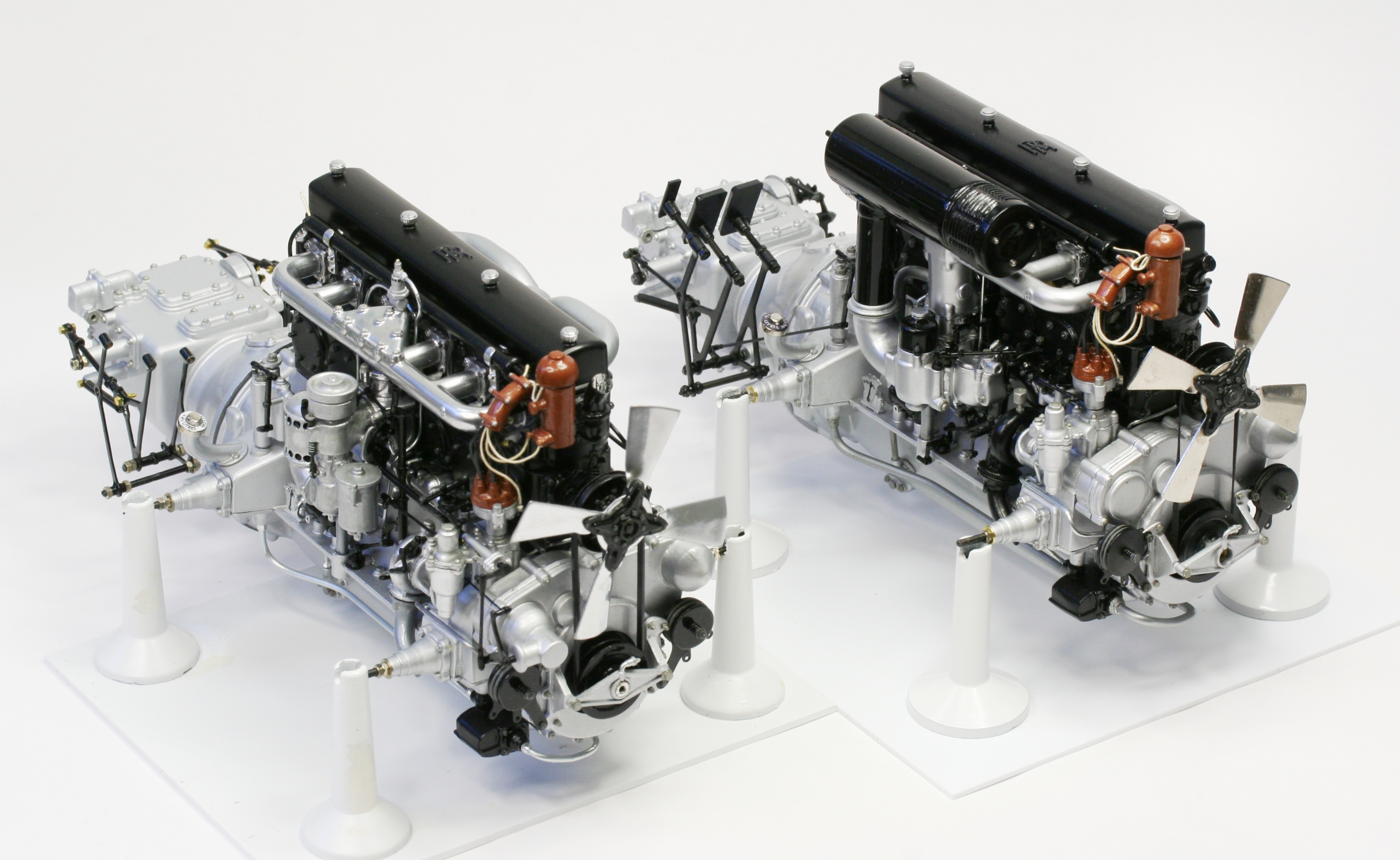

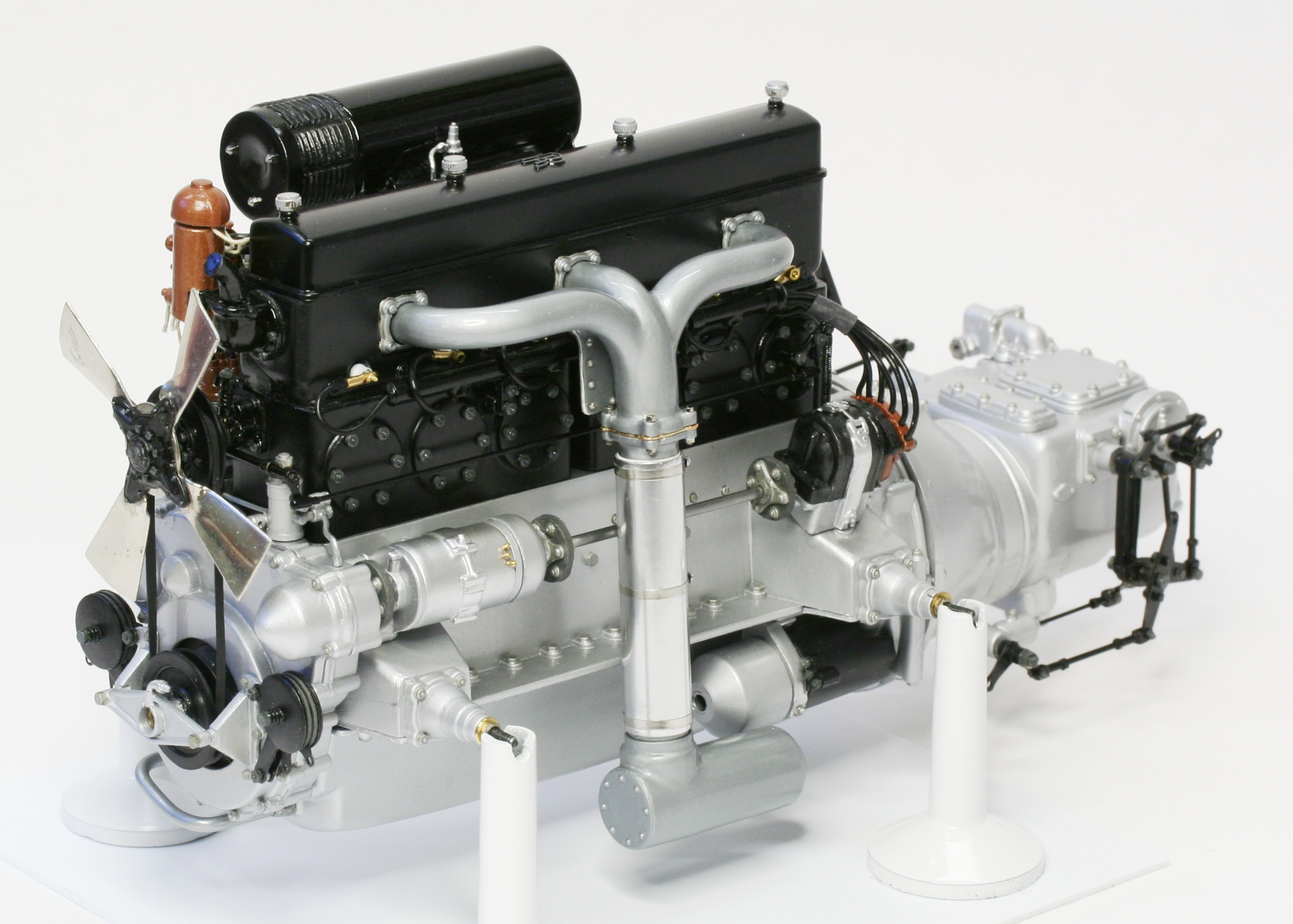

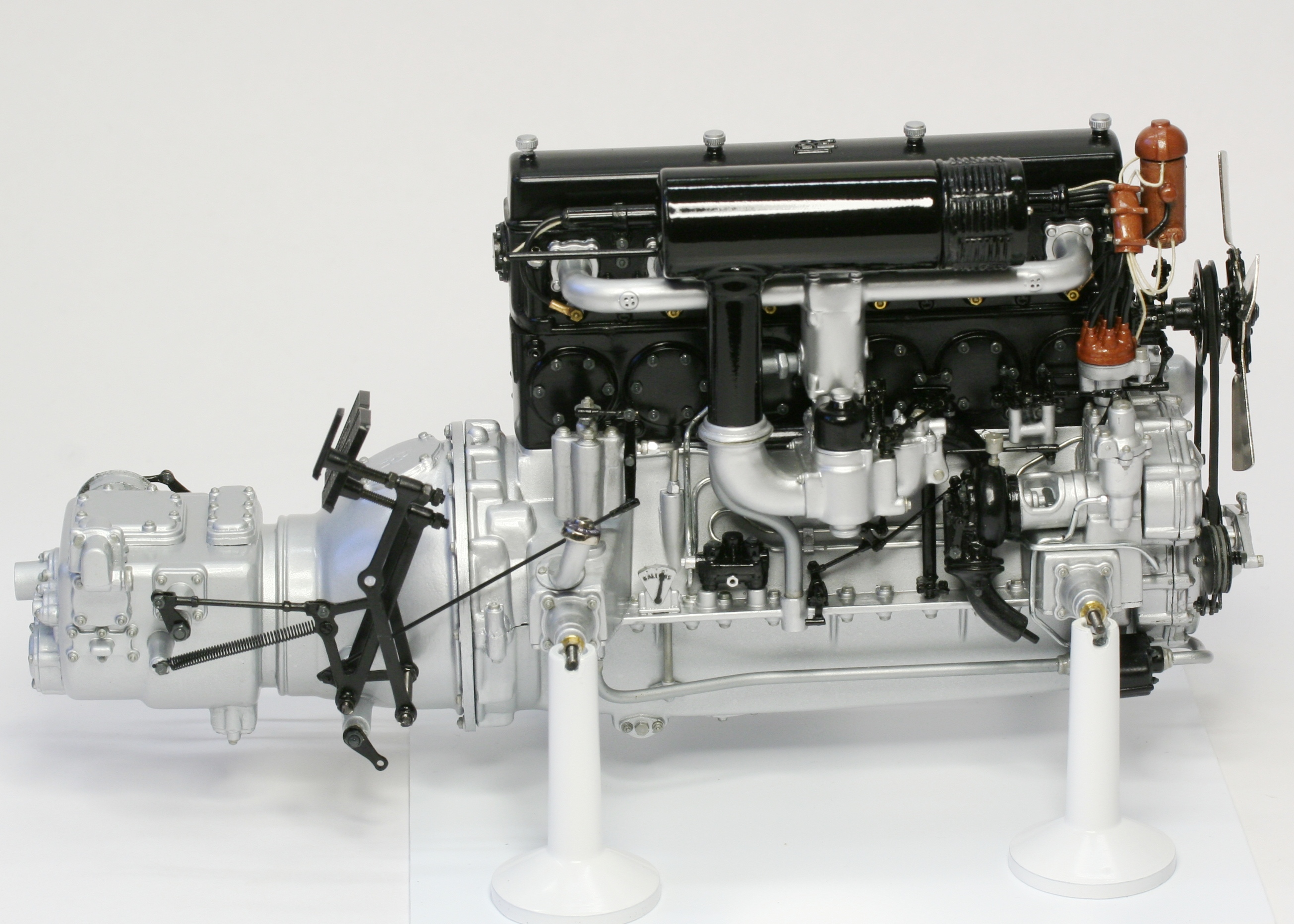

In April 1933, Rolls-Royce made substantial changes to the Phantom II carburetor. The new carburetor was a semi-expanding type and featured a large horizontal air cleaner positioned alongside the engine. In contrast, the Pocher kits feature a very different and, unfortunately, oversized first generation carburetor. That carburetor was taken out of production in January 1932. Virtually nothing of the Pocher carburetor could be used in building the semi-expanding version so this carburetor model was almost completely scratch built.

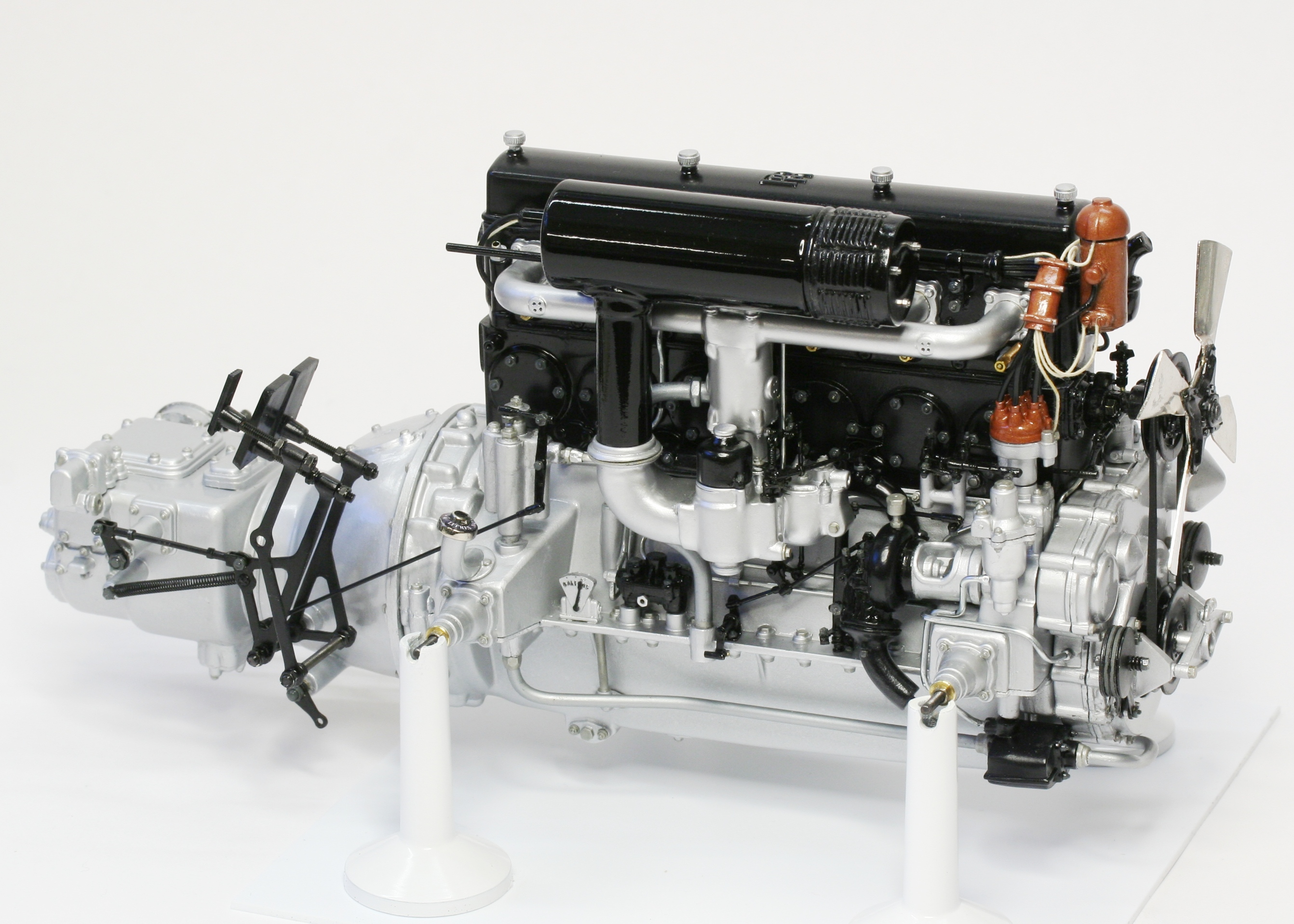

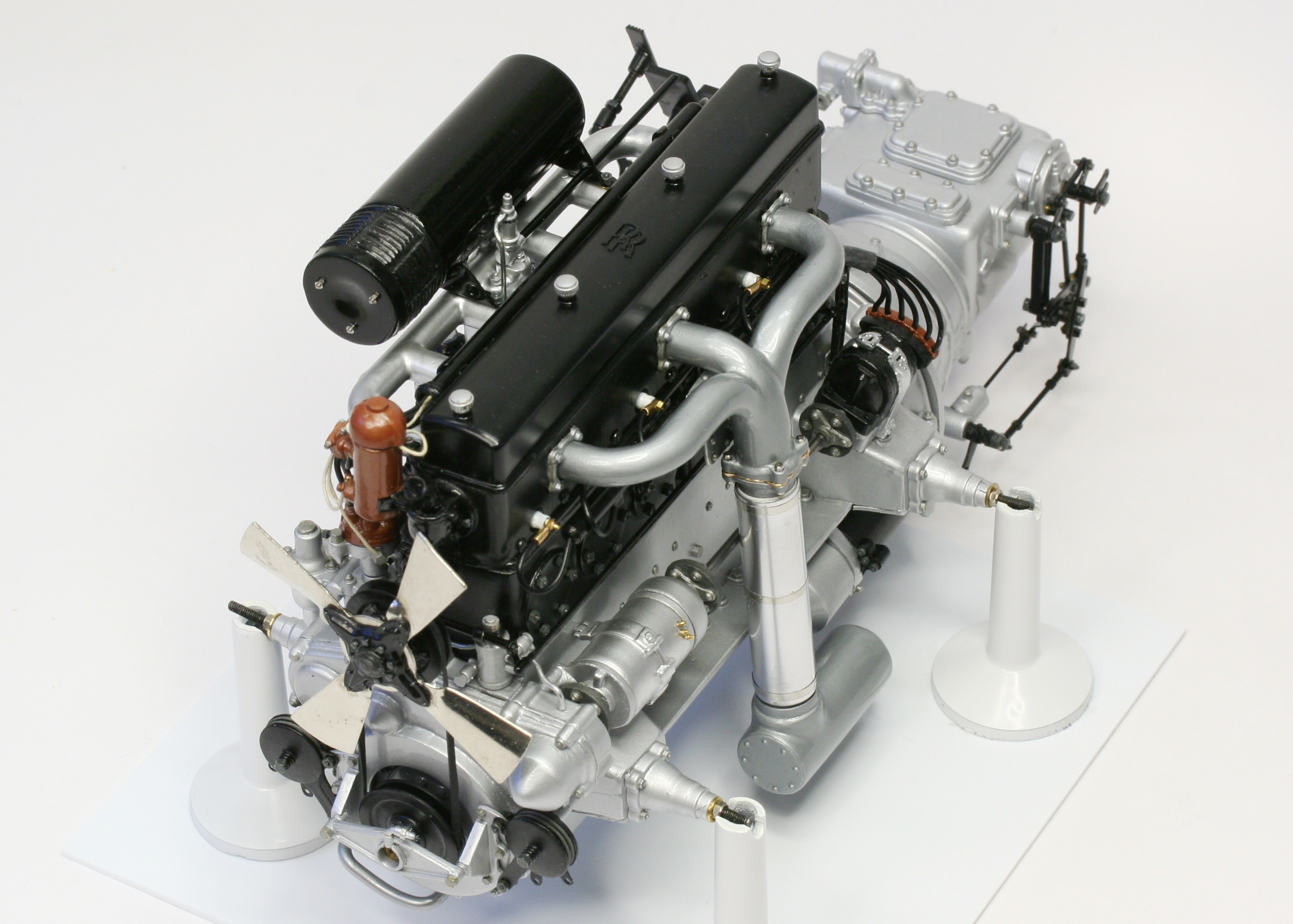

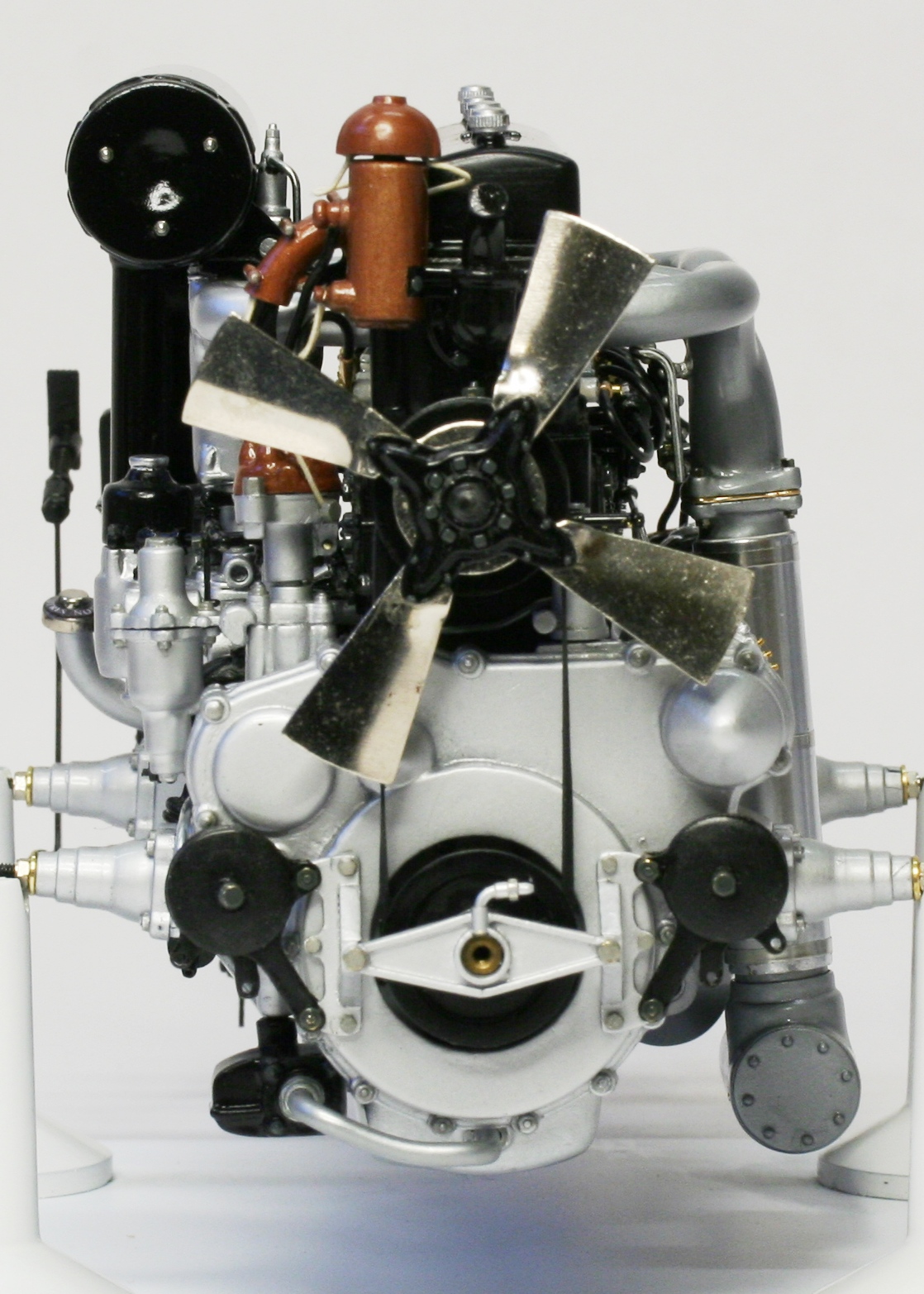

Semi-expanding

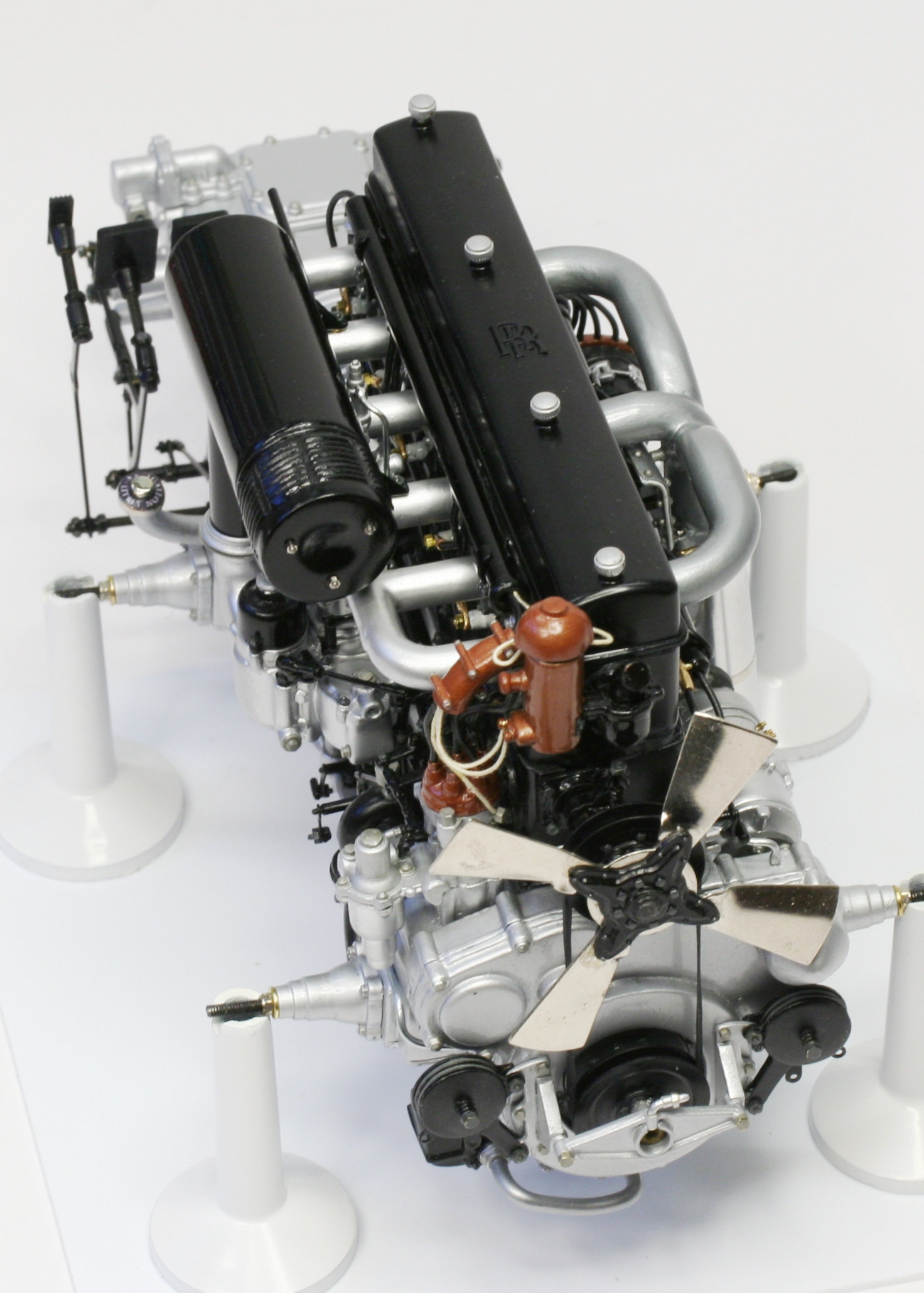

Carburetor
April 1933

Second Generation
Carburetor
January 1932

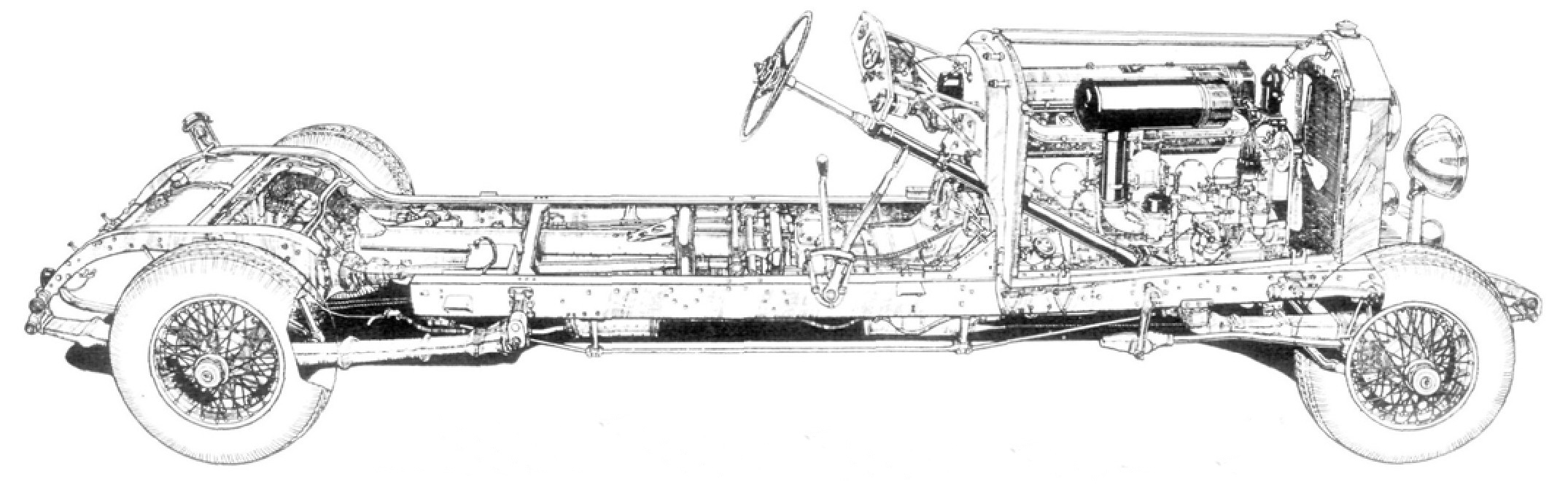

This Rolls-Royce chassis drawing includes the semi-expanding carburetor. Click the image to enlarge.
